Epson LabelWorks LW-PX800 review

Epson LabelWorks LW-PX800 review

The LW-PX800 is a network-capable desktop printer for Epson’s industrial PX cassette system, not a self-contained keyboard labeler. It accepts PX tape up to 36 mm, sends jobs by USB, wired LAN or wireless LAN, and is designed around connected software. That combination suits a bench, equipment room or shared work area where people prepare technical labels in batches. It is a poor match if you want to type at the printer, carry it between jobs without a power outlet, or reuse Brother TZe or DYMO D1 tapes.

Choose your design device before choosing the printer

There is no LCD or printer-side keyboard. Epson lists USB, wireless LAN and LAN connections, and the included software is part of the workflow: the current product page lists Epson Label Editor for Windows 7 through 11, Label Editor Lite for iOS, and Label Editor Mobile for Android and iOS. The same page lists Excel data import, batch-oriented features, numbering, QR codes and barcodes. The two-page setup sheet describes a legacy Label Editor Professional installation and mentions Mac OS X, but the current product-page software list does not name a Mac desktop package. I would not treat that older reference as confirmation of current Mac compatibility.

Wireless setup has more in common with installing a small network printer than with a pocket label maker. Epson’s setup sheet describes infrastructure and access-point modes, while the product page says wireless access can serve multiple users. A USB computer route is also available, and the back of the printer has a 10/100 Ethernet port. If your ordinary question is “Can I design from a phone or computer?”, the answer is yes; if it is “Can I compose directly on the machine?”, it is no. The printed line count and maximum combined text height are not established by the sources reviewed, so a wide cassette should not be mistaken for a promise about tall or multi-line text.

Wide PX media is the reason to consider it

The PX800’s documented cassette widths are 4, 6, 9, 12, 18, 24 and 36 mm. That is a materially wider ceiling than the 24 mm Epson LW-PX400 and LW-C610PX. PX is a dedicated Epson cassette family: a TZe, TZ or DYMO D1 cartridge is not an interchangeable substitute. Epson lists magnetic media and heat-shrink tubing among its uses, but tube sizes have their own limits. The PX800 page lists compatible heat-shrink supplies up to 21 mm; it does not establish a 36 mm heat-shrink option. Check the material and width for the particular cassette rather than transferring the printer’s widest general tape figure to every specialty supply.

Epson specifies thermal-transfer printing at 360 dpi, a 27.1 mm printhead and maximum speed of 35 mm per second. These are manufacturer specifications, not independent measurements. A 36 mm cassette is wider than that stated printhead, so 36 mm stock does not mean 36 mm of printable width; Epson also does not state a maximum printed height here. Standard industrial tapes have a 10 mm leading margin, with specialty media varying. That setup margin can matter when many short cable labels are printed.

Batch tools, cuts and what is not on the printer

The feature list includes repeat printing, auto-increment, number serialization, data import, mixed label lengths, vertical printing, cable-wrap and flag layouts, QR codes and 15 barcode types. Those are connected-software tasks: there is no screen or internal memory for storing and selecting finished layouts on the printer itself. The page lists an automatic cutter with half-cut, useful when a run of labels should remain joined on one backing strip for easier peeling. The installation sheet shows that the automatic cutter can be set to “Don’t cut” in software; it does not document a hand-operated cutter lever. PeelGuard is a separate tape-corner trimmer, and Epson’s sheet says that trimmer cannot process tape 6 mm wide or narrower. That detail matters if your work mixes narrow wire labels with finished, rounded corners. Neither cut feature makes every PX adhesive suitable for every surface.

Power and package details

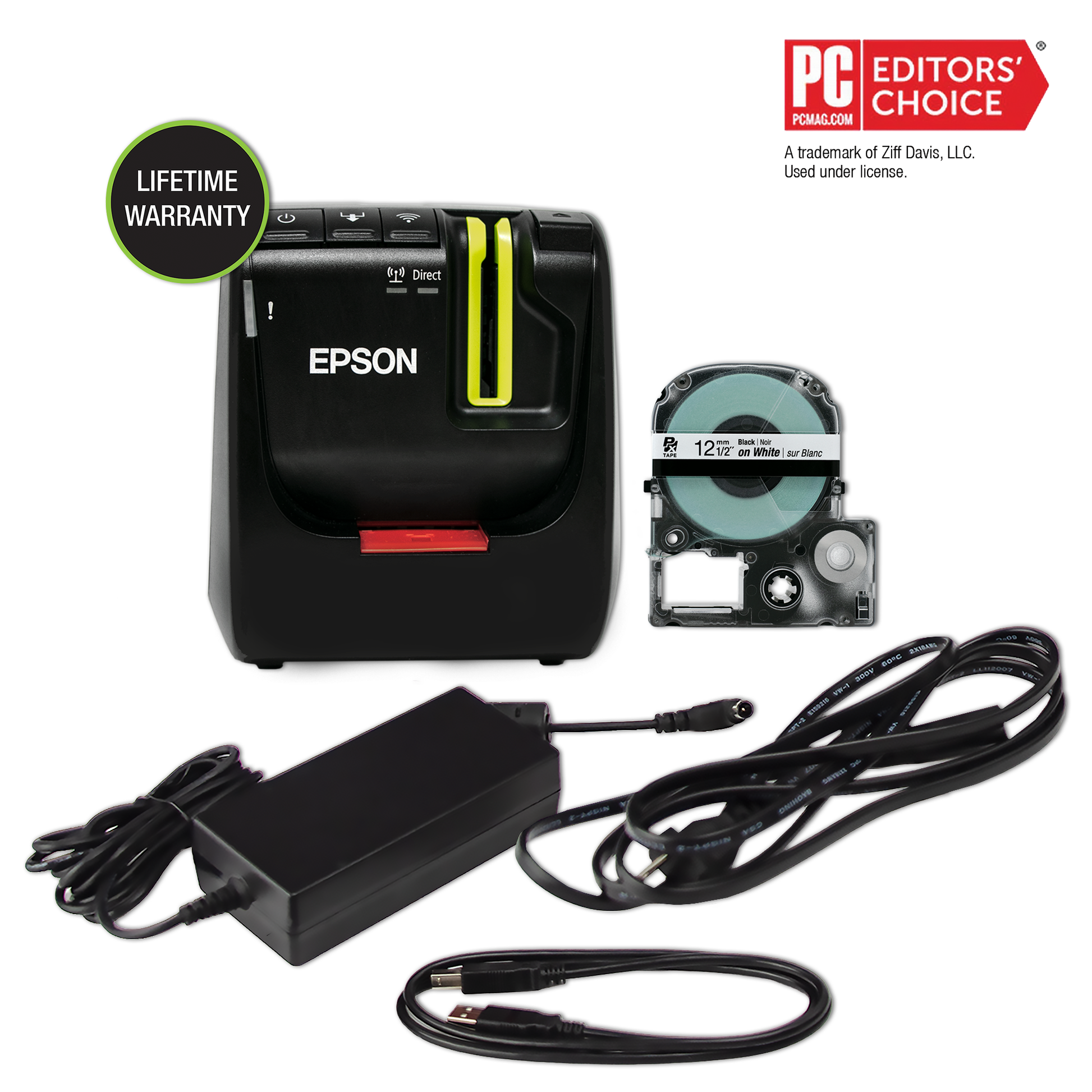

The exact LW-PX800 kit page lists the printer, a 12 mm black-on-white starter cassette, Label Editor software, AC adapter, USB cable and manual. The installation sheet identifies the adapter as AST1527Z1-1 and gives an input range of 100–240 V. It lists no battery route; Epson’s specification page says battery is not applicable. This is consequently a powered workstation tool, not a rechargeable field unit. The manual gives approximate dimensions of 123 × 153 × 139 mm and a weight of about 1,080 g. The listed package does not include a carry case, so a used or open-box unit should be checked for the adapter, USB cable and cassette rather than assumed complete.

Who should choose it, and what to compare

Choose the PX800 when a wide Epson PX cassette, networked computer/phone creation, barcode or QR output, and repeated technical labels all matter more than local typing or battery operation. It makes the most sense as a stationary shared printer with the correct PX supplies already part of the plan. If you need a built-in QWERTY keyboard and the same 36 mm PX ceiling, compare the LW-PX900PCD package; its keyboard and included rechargeable battery change the way it can be used away from a desk. If 24 mm is enough and you prefer a smaller phone-led printer, compare the PX400 or C610PX instead, paying attention to their different USB/Bluetooth routes. If you already stock TZe or D1 cassettes, choose a printer for that cassette system rather than buying the PX800 and expecting those supplies to fit.
